Security and authorization

This guide describes how to configure the data access security in the Flexmonster server.

Basic authorization

By default, Flexmonster server is accessible to anyone who can reach its host. To restrict access to the server, configure the built-in basic authorization.

Step 1. Enable basic authorization

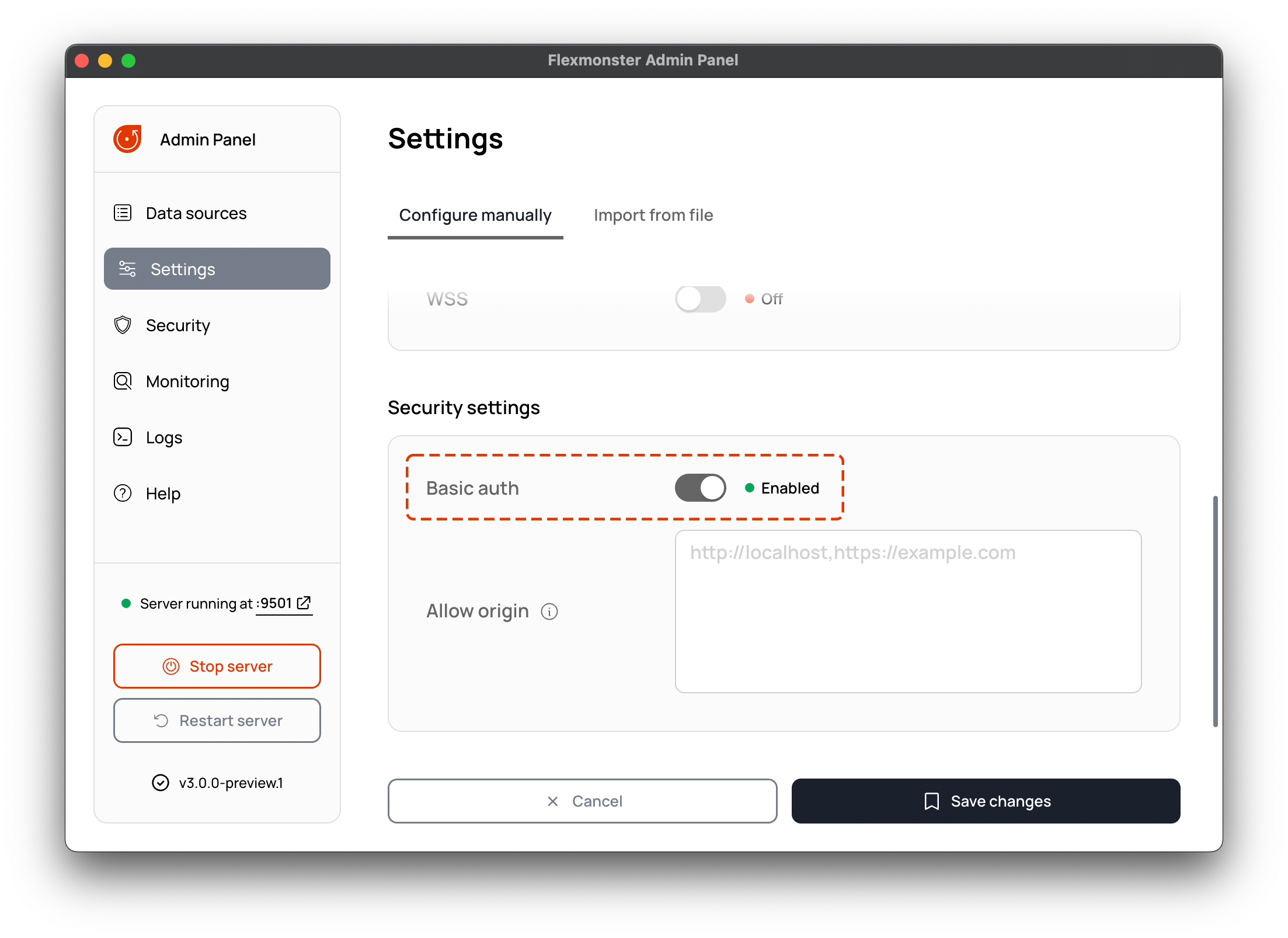

Go to Settings > Security settings. Then, turn on the basic authorization using the Basic auth toggle switch: Enable_auth

Step 2. Configure CORS

Basic Authorization requires certain origins to be defined in the Access-Control-Allow-Origin header. Origin is a domain that sends requests to the Flexmonster server (e.g., http://localhost:8080 or https://example.com).

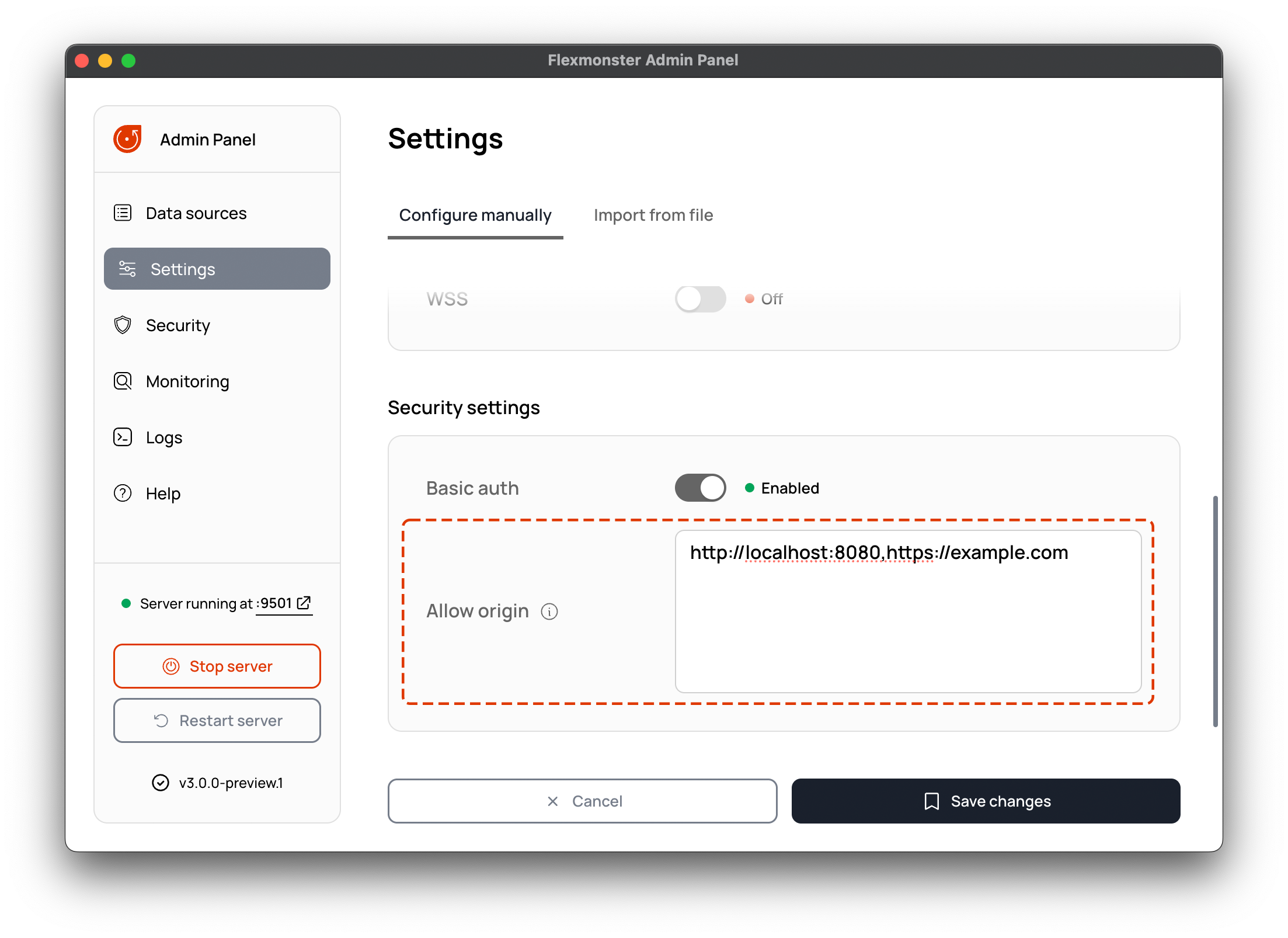

To specify origins, go to Settings > Security settings and enter them in the Allow origin input field. Several origins should be separated with a comma. See an example:

Configure_Cors

Select Save changes to apply the basic auth and CORS configurations.

Step 3. Create a user

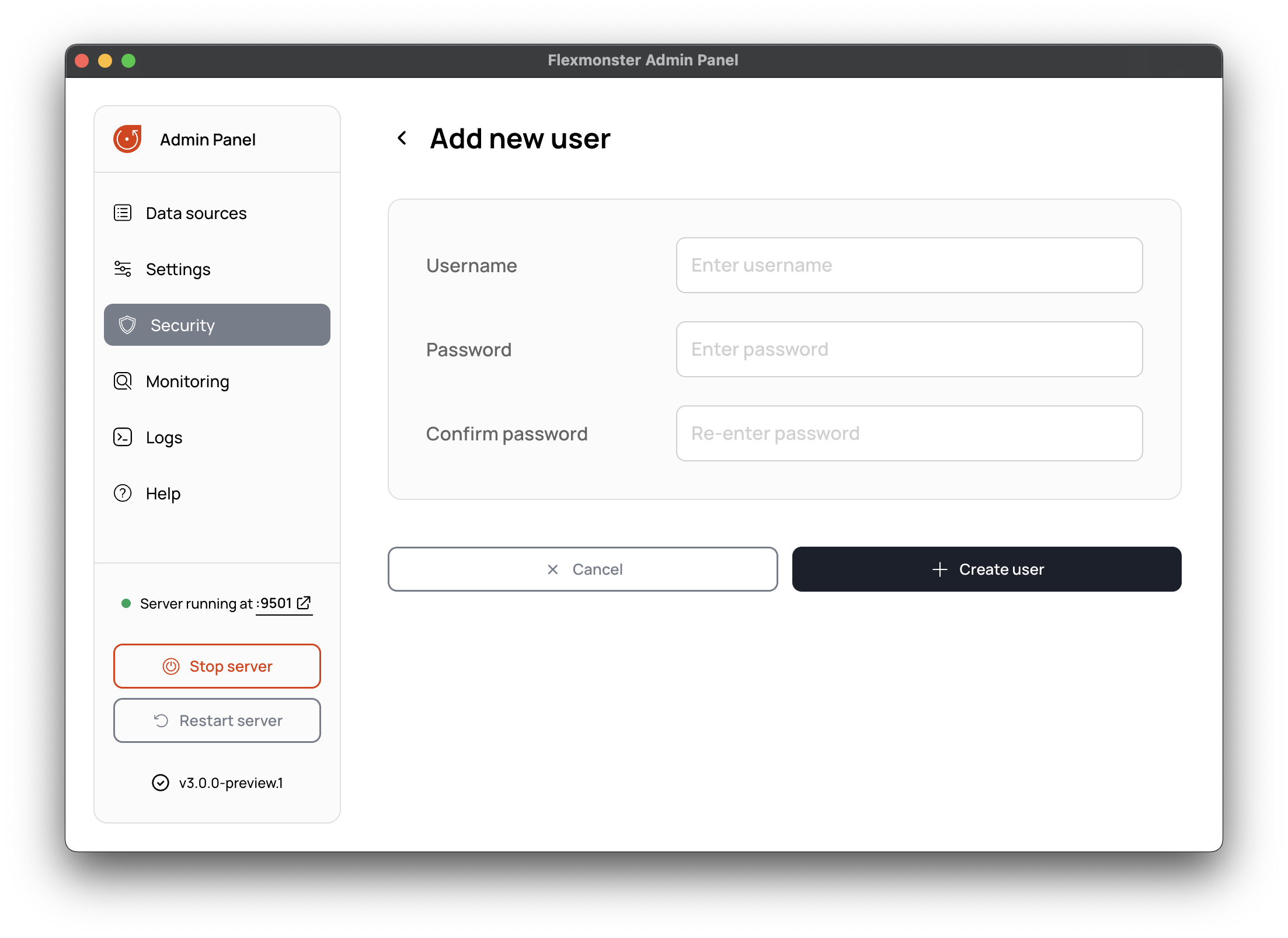

Step 3.1. In the Admin Panel, go to Security > Add new user. You will see the Add new user view:

Add_new_user

Step 3.2. Enter a username and a password. Note that once the user is created, you cannot change the username.

Step 3.3. Select Create user to add a new user.

To change a password for the user or to delete the user, select the username and make the necessary changes in the Edit user view.

Step 4. Specify credentials on the client side

In the Flexmonster UI, add a request header with basic authentication:

const dataSource = {
  url: "ws://localhost:9501",
  name: "SampleData",
  requestHeaders: {
    "Authorization": "Basic QWxhZGRpbjpPcGVuU2VzYW1l"
  }
};

Note The header should be specified in the standard for basic authentication format.

In this case, the authorization will be automatic, and the browser will not ask for the login and password.

Configure a secure WebSocket connection

All data sent over an unsecured WebSocket is not encrypted and can be inspected. To make the Flexmonster server more secure, follow the steps below to configure a secure WebSocket connection.

Step 1. Enable WSS

In the Admin Panel, go to Settings > WSS settings. Enable the secure WebSocket using the WSS toggle switch:

Enable_Websocket

Step 2. Add a certificate

The server supports PFX and PEM SSL/TLS certificates:

Step 3. Save the changes

Once you have enabled WSS and added the certificate, select Save changes. You can now connect to the Flexmonster server via WSS when configuring the connection on the client side.
